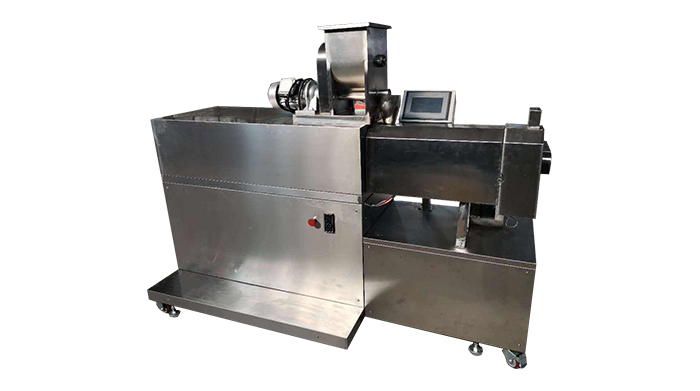

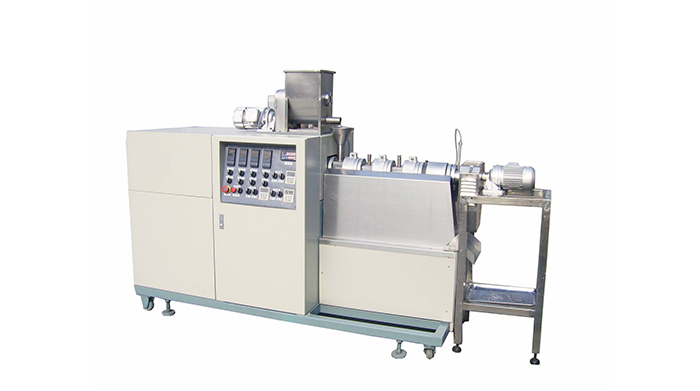

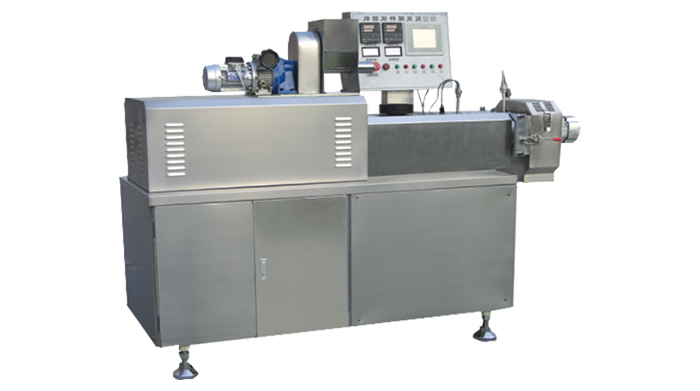

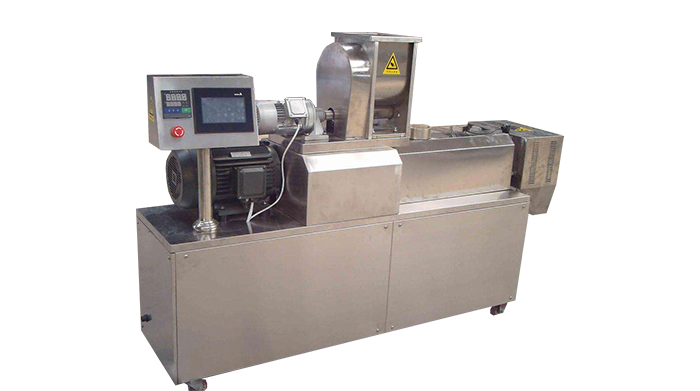

The lab twin-screw extruder is designed for the needs of universities and scientific research institutions based on the years of extruder research and rich practical experience of Jinan Kelid Machinery Co., Ltd. It can be used for various extrusion, puffing, curing, and other experiments. Through this machine, the first hand of experiment's data like temperature, pressure, speed, etc. can be grasped. And various experimental samples under different parameters and different formulations can be obtained as well.
The lab twin-screw extruder consists of feeding system, extrusion system, cutting system, heating system, and control system. It is suitable for various experiments with different raw materials such as grains, starches, proteins, and so on. The machine request small foot point, has complete functions and is easy to install. It has all the functions of an ordinary twin-screw extruder and is very suitable for teaching, research, and experiments on different occasions.
The screw of the lab twin-screw extruder has self-cleaning function, which has high pushing efficiency of materials and good curing and puffing effect. The extruder adopts a stable and reliable frequency conversion speed regulation system, which is convenient and accurate to operate. It is the best choice for experimental research and data collection.
Sample:
|
Engine Power |
Engine Speed-Control |
Screw Diameter |
Screw Central Distance |
Speed Range |
Screw Mode |
First Series L/D |
|
5.5KW |
Frequency Speed-Control |
∮30 |
26mm |
0-500rpm |
Building block-combined type |
11.6 12.7 23 |
|
Second series L/D |
Heating way |
Cooling way |
Temperature scope |
Temperature precision |
Number of measuring temperature point |
Output |
|
9.3 15 20.6 |
Heating ring |
Water |
20℃-300℃ |
±1.0℃ |
4 |
10-25KG/H |
|
Pressure scope |
Pressure precision |
Number of measuring pressure |
Model cooling way |
Filling intake |
Water intake |
Percent of water |
|
0-30MPa |
0.1MPa |
3 |
Water |
3 |
3 |
6%-7% |
1. Help client to design the factory and offer professional advice and engineering drawing for the factory layout.
2. Report production progress regularly.
3. If the client can’t come to check the machine before delivery, Kelid helps the client check and make a testing report to show the details.
4. Provide user manual, factory inspection form, product certificate.
5. Provide 1-2 engineers to the client's factory for the installation and first-line workers' training.
6. After the installation, our engineer will assist you in on-site commissioning and personnel training (Training includes: equipment operation methods, precautions for use, equipment maintenance, etc.
7. Provide 13 months warranty and lifelong service.
